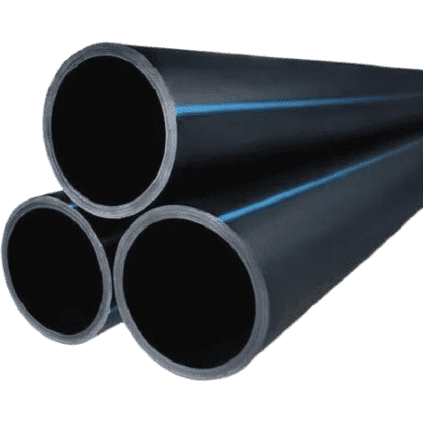

HDPE Ducts and Pipes

AL-KHALEEJ pipes are a type of thermoplastic pipe made from high-density polyethylene material (HDPE). These pipes are known for their durability, flexibility, and resistance to various environmental factors, making them popular for a wide range of applications in the plumbing, water supply, and industrial sectors.

APPLICATIONS

Water Supply: HDPE pipes are commonly used for water distribution and transmission. They are favored for their resistance to chemicals and ability to maintain water quality.

Wastewater Management: HDPE pipes are used for sewage and wastewater collection and conveyance due to their resistance to corrosion and abrasion.

Industrial Applications: They are used in industrial processes for transporting chemicals, acids, and corrosive fluids.

Mining: HDPE pipes are used in mining operations to transport slurry and other materials.

Gas Distribution: HDPE pipes can also be used for natural gas distribution, although they are typically designated as PE (polyethylene) pipes in this context.

Irrigation: They are employed in agricultural irrigation systems due to their durability and resistance to UV radiation.

Geothermal Systems: HDPE pipes are used in geothermal heating and cooling systems.

FEATURES

Durability: HDPE pipes are highly resistant to corrosion and chemical degradation, which makes them suitable for carrying a variety of fluids, including potable water, wastewater, chemicals, and slurries.

Flexibility: HDPE pipes are flexible and can bend without breaking. This flexibility allows for easy installation around obstacles and in various terrains, reducing the need for numerous joints and fittings.

Lightweight: HDPE pipes are relatively lightweight compared to other pipe materials, which simplifies transportation and installation.

Longevity: HDPE pipes have a long service life and can last for several decades. They are also resistant to cracking, which can be an issue in more brittle pipe materials.

Resistance to Abrasion: HDPE pipes are highly resistant to abrasion, making them suitable for transporting abrasive materials like slurry or gravel.

Leak-Proof Joints: HDPE pipes can be joined using various methods, including fusion welding, which creates leak-proof joints that are as strong as the pipe itself.

Corrosion Resistance: HDPE pipes are immune to corrosion from chemicals, soil, and water, which helps maintain water quality in applications like water distribution.

Temperature Resistance: HDPE pipes can handle a wide range of temperatures, making them suitable for both hot and cold-water systems.

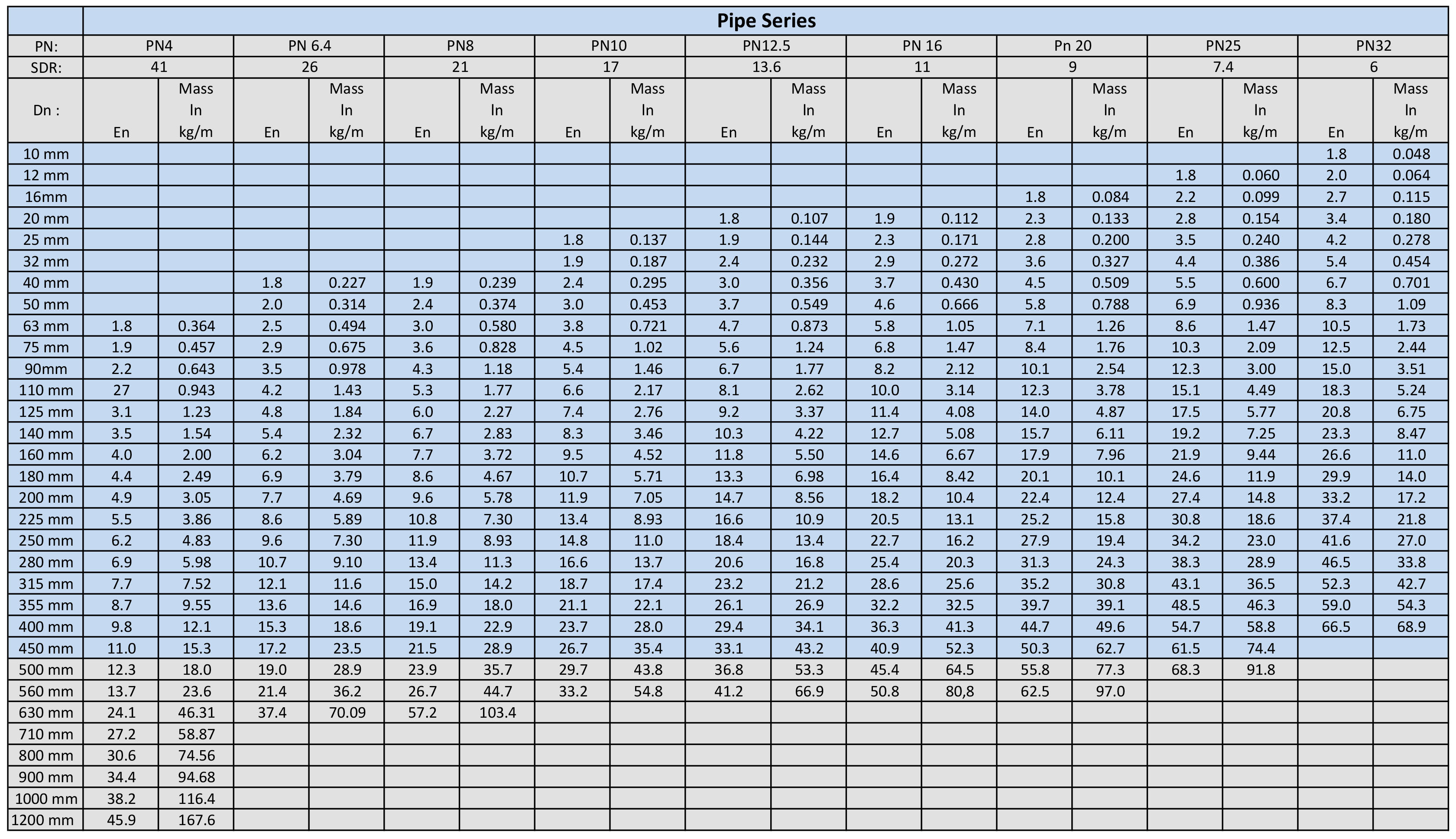

PE 100 PIPE DIMENSION CONFORMING
TO ISO 4427, DIN 8074 & PREN 12201
SPECIFICATION
DESIGN STRESS=8 MPA

SDR: Standard Dimension Ration.
Dn: Nominal Outside Diameter of the pipe.
En: Nominal Wall Thickness.
PN: Nominal Pressure Rating (bar).

Overall, HDPE pipes have gained popularity due to their combination of strength, flexibility, and resistance to various environmental factors,
making them a versatile choice for a wide range of piping applications.
